Chord diagram of enrichment gene–pathway relationships

Draws a chord diagram linking genes to the enriched pathways they belong to. Chords can be coloured by fold-change, regulation direction, or source pathway.

Usage

get_enrichment_chord(
  x,
  vista = NULL,
  sample_comparison = NULL,
  pathways = NULL,
  top_n = 8,
  pathway_column = c("Description", "ID"),
  gene_column = c("auto", "geneID", "core_enrichment"),
  gene_sep = "/",
  min_pathways = 1,
  max_genes = 50,
  gene_order_by = c("none", "foldchange", "abs_foldchange"),
  gene_id_column = NULL,
  display_id = NULL,
  color_by = c("foldchange", "regulation", "pathway"),
  up_color = "#D73027",
  down_color = "#1A9850",
  other_color = "grey70",
  pathway_colors = NULL,
  transparency = 0.4,
  gap_degree = 2,
  label_cex = 0.7,
  title = NULL
)

Arguments

x

An enrichResult, gseaResult, or compareClusterResult from clusterProfiler, or a list containing an enrich element (e.g. output of get_msigdb_enrichment()).

vista

Optional VISTA object. Required when color_by is "foldchange" or "regulation".

sample_comparison

Character scalar naming the DE comparison in vista to pull log2FC values from. Required when vista is supplied.

pathways

Optional character vector of pathway names to include. Matches against pathway_column.

top_n

Number of top pathways to display when pathways is NULL (default 8).

pathway_column

Column in the enrichment result to match pathway names: "Description" (default) or "ID".

gene_column

Column storing gene members: "auto" (default), "geneID", or "core_enrichment".

gene_sep

Delimiter separating genes in gene_column (default "/").

min_pathways

Minimum number of pathways a gene must appear in to be shown. Set to 2 to display only hub genes shared across terms. Default 1 (show all genes).

max_genes

Maximum number of genes to display (default 50). A safety cap for readability.

gene_order_by

Order of gene sectors in the chord plot: "none" (default), "foldchange" (descending log2FC), or "abs_foldchange" (descending absolute log2FC). Fold-change based ordering requires vista + sample_comparison.

gene_id_column

Column in rowData(vista) used to map enrichment gene IDs to vista rownames (for FC lookup).

display_id

Column in rowData(vista) providing display-friendly gene names.

color_by

How to colour chords: "foldchange" (continuous gradient), "regulation" (Up / Down / Other), or "pathway" (source pathway). Falls back to "pathway" when vista is NULL.

up_color

Colour for up-regulated genes (default "#D73027").

down_color

Colour for down-regulated genes (default "#1A9850").

other_color

Colour for non-significant genes (default "grey70").

pathway_colors

Optional named vector of colours for pathway sectors. When NULL, colours are generated from an HCL palette.

transparency

Chord transparency, 0–1 (default 0.4).

gap_degree

Gap between sectors in degrees (default 2).

label_cex

Text size for sector labels (default 0.7).

title

Optional plot title.

Value

Invisibly returns a list with:

gene_data

Tibble of genes with pathway membership and (optionally) fold-change values.

hub_genes

Character vector of genes appearing in two or more pathways.

The chord diagram is drawn as a side effect.

Details

The plot reveals hub genes (those driving multiple enriched terms) and pathway redundancy (terms sharing many genes). This complements get_enrichment_plot() (which shows significance) and get_pathway_heatmap() (which shows expression patterns).

Examples

v <- example_vista()
msig <- get_msigdb_enrichment(
  v,
  sample_comparison = names(comparisons(v))[1],
  regulation = "Both",
  msigdb_category = "H",
  from_type = "ENSEMBL"
)
#>
#> Using human MSigDB with ortholog mapping to mouse. Use `db_species = "MM"` for mouse-native gene sets.
#> This message is displayed once per session.

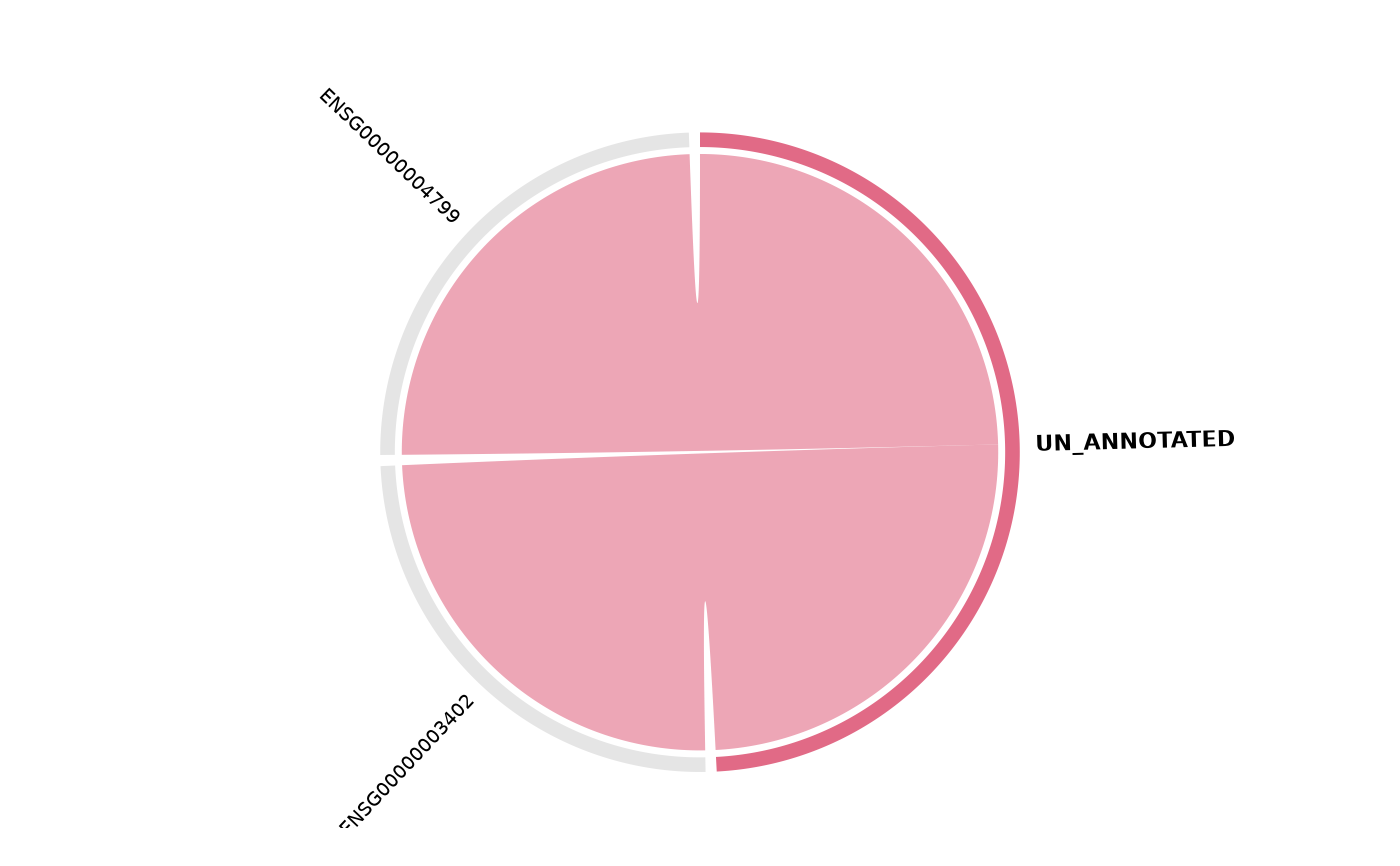

get_enrichment_chord(msig, top_n = 5)
#> Warning: `vista` and `sample_comparison` are required for "foldchange" colouring.
#> Falling back to "pathway".


# \donttest{
data("count_data", package = "VISTA")
data("sample_metadata", package = "VISTA")

vista <- create_vista(
  counts = count_data[1:200, ],
  sample_info = sample_metadata[1:6, ],
  column_geneid = "gene_id",
  group_column = "cond_long",
  group_numerator = "treatment1",
  group_denominator = "control"
)
#> estimating size factors
#> estimating dispersions
#> gene-wise dispersion estimates
#> mean-dispersion relationship
#> final dispersion estimates
#> fitting model and testing

msig <- get_msigdb_enrichment(
  vista,
  sample_comparison = names(comparisons(vista))[1],
  regulation = "Up", from_type = "ENSEMBL"
)

# Simple: pathway-coloured chords
get_enrichment_chord(msig)
#> Warning: `vista` and `sample_comparison` are required for "foldchange" colouring.
#> Falling back to "pathway".

# With fold-change colouring

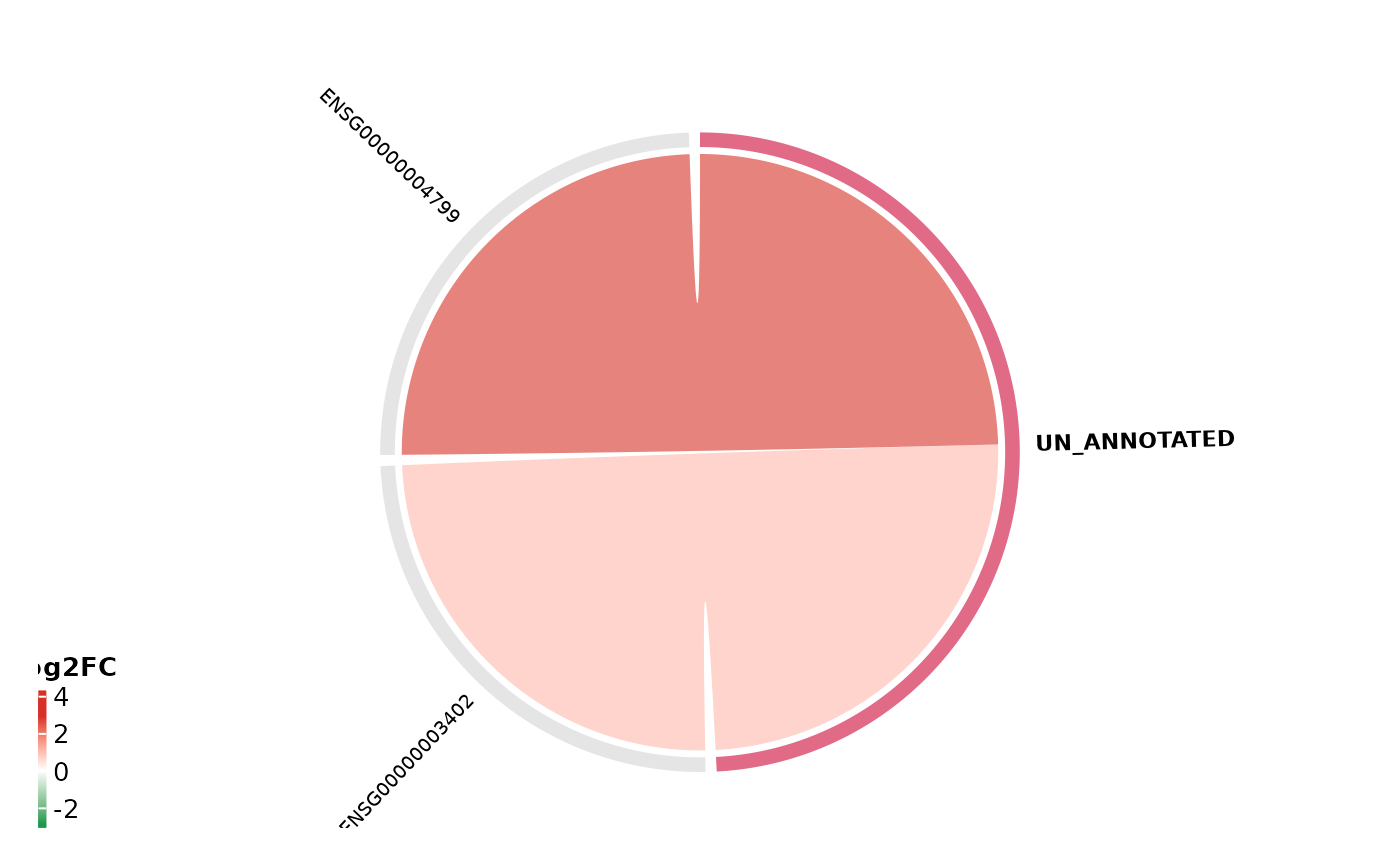

get_enrichment_chord(
  msig, vista = vista,
  sample_comparison = names(comparisons(vista))[1],
  color_by = "foldchange"
)


# Hub genes only (shared across 2+ pathways)
pw_long <- get_pathway_genes(msig, return_type = "long")
if (any(table(pw_long$gene) >= 2)) {
  get_enrichment_chord(msig, min_pathways = 2)
}
# }
