Raincloud Plots in VISTA
VISTA Development Team
VISTA-raincloud.RmdOverview
Raincloud plots combine three visual layers:
- distribution shape (half-violin),
- robust summary (boxplot), and
- individual observations (jittered points).
This vignette shows raincloud plotting for both expression and
fold-change data in VISTA, including line-connection control with
id.long.var and optional statistical annotations.
Create a VISTA object
library(VISTA)
library(ggplot2)
data("count_data", package = "VISTA")
data("sample_metadata", package = "VISTA")
# Keep runtime modest for vignette rendering
count_small <- count_data[1:1000, ]
vista <- create_vista(
counts = count_small,
sample_info = sample_metadata,
column_geneid = "gene_id",
group_column = "cond_long",
group_numerator = "treatment1",
group_denominator = "control",
method = "deseq2",
min_counts = 10,
min_replicates = 1
)
comp_names <- names(comparisons(vista))
top_up <- get_genes_by_regulation(
vista,
sample_comparisons = comp_names[1],
regulation = "Up"
)
n_select_genes = 50
selected_genes <- stats::na.omit(utils::head(top_up$gene_id, n_select_genes))
if (!length(selected_genes)) {
selected_genes <- rownames(vista)[1:n_select_genes]
}Expression Raincloud

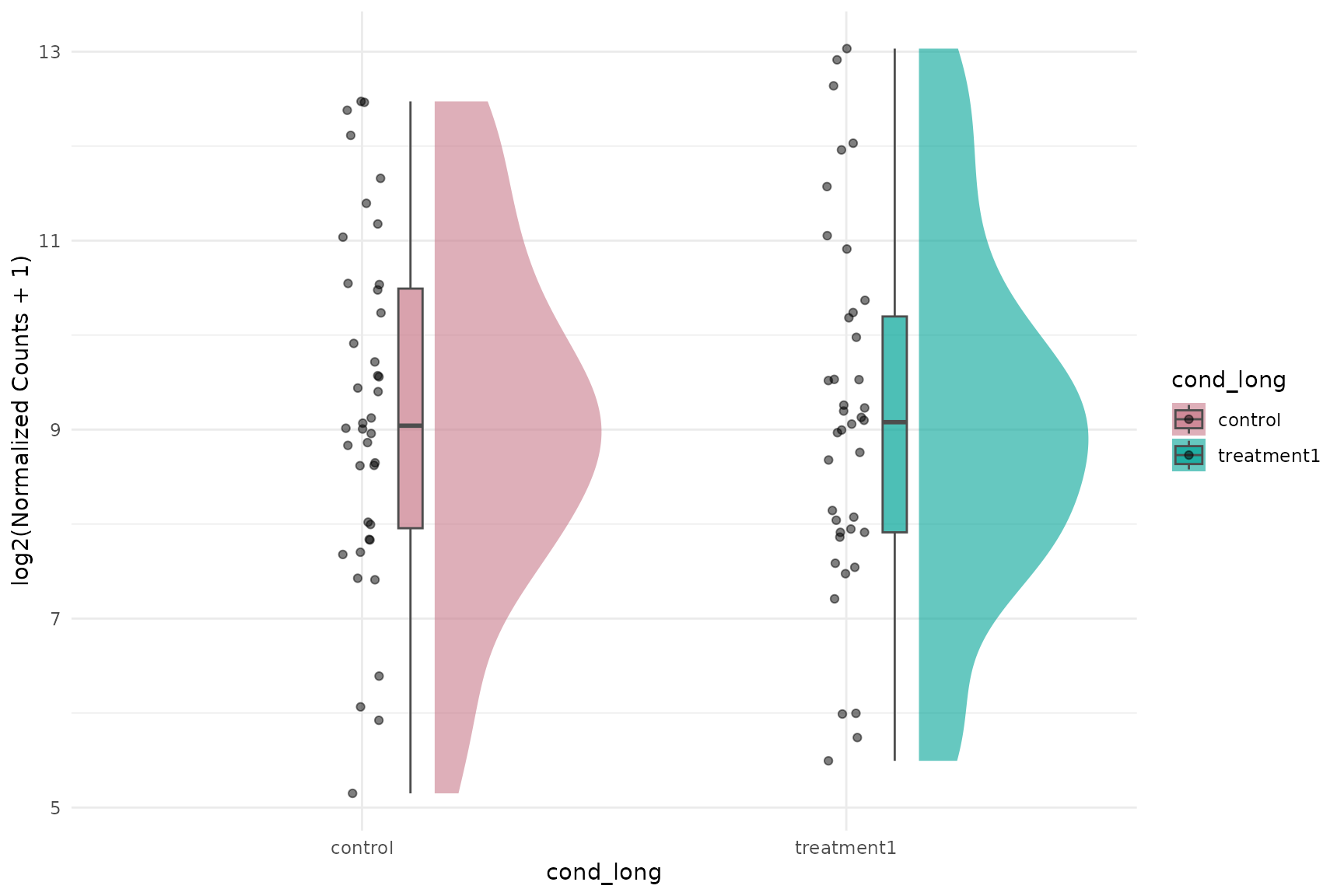

Basic expression raincloud (pooled gene-sample values)
get_expression_raincloud(
vista,
genes = selected_genes[1:10],
value_transform = "log2",
summarise = FALSE,
facet_by = "none"
)
summarise = FALSE vs summarise = TRUE
For expression rainclouds:
-
summarise = FALSE: each point is a gene-sample value (pooled across selected genes). -
summarise = TRUE: each point is a gene-level group summary (one value per gene per group).
With summarise = TRUE, using
id.long.var = "gene" is useful for connecting each gene
across groups.

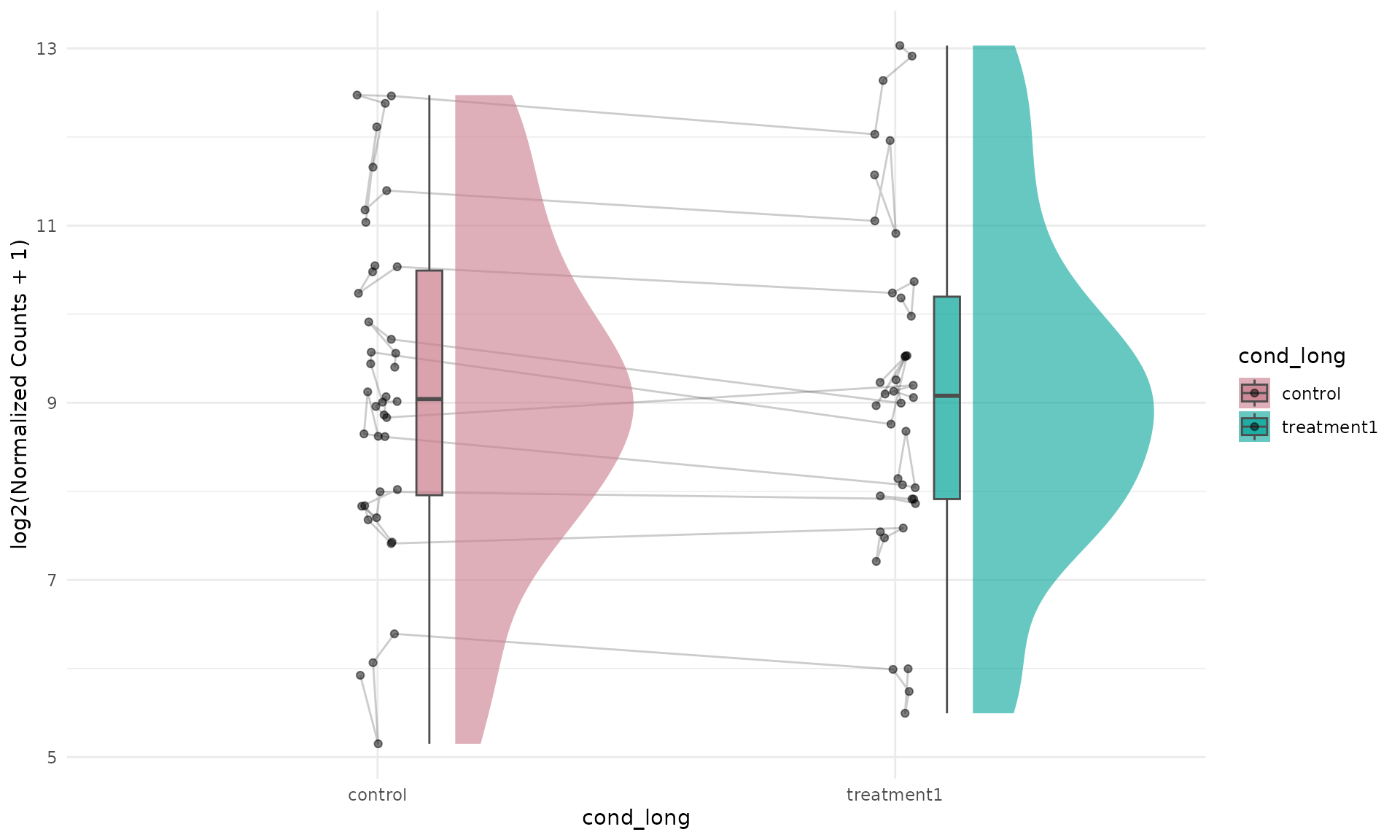

get_expression_raincloud(
vista,
genes = selected_genes[1:10],
value_transform = "log2",
summarise = FALSE,
facet_by = "none",
id.long.var = "gene"
)

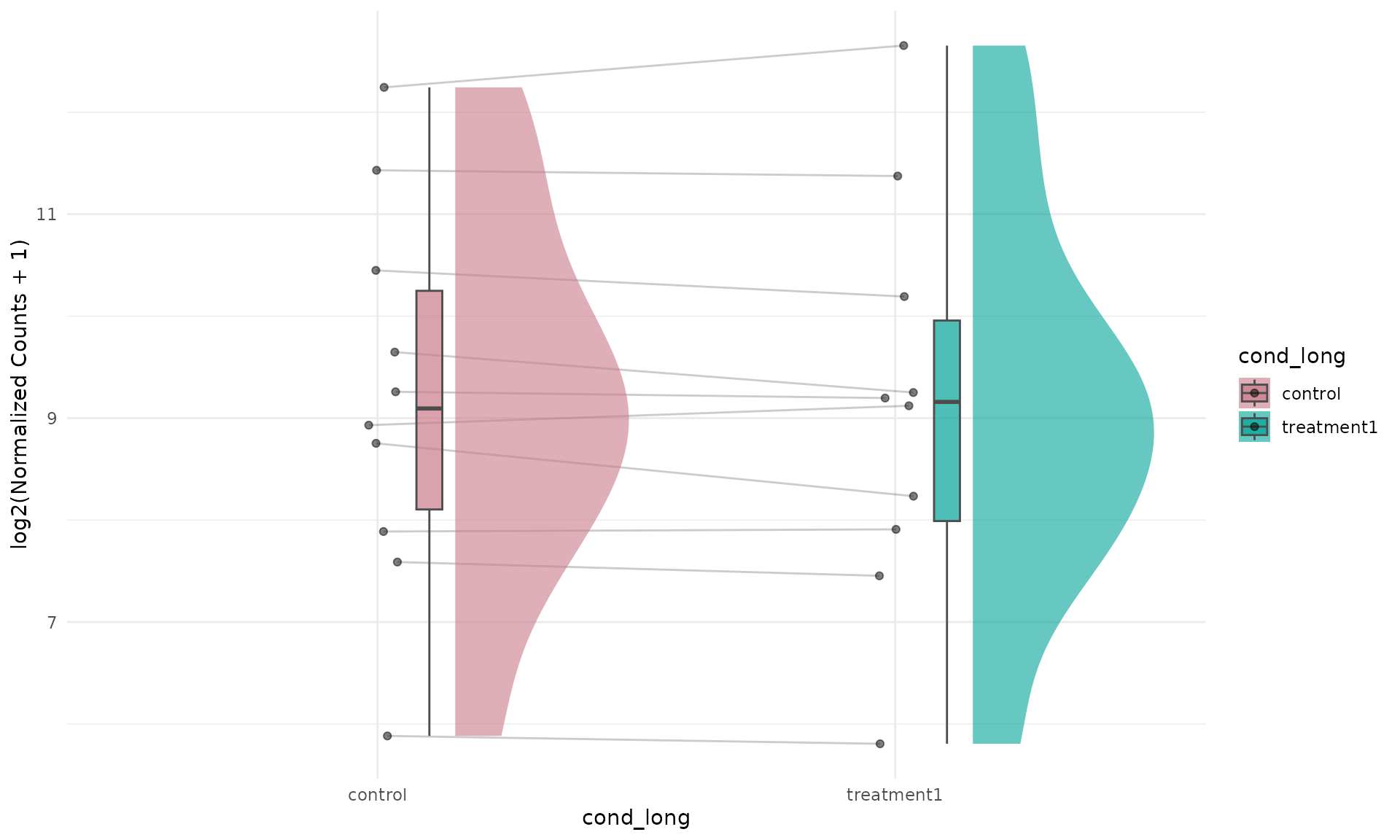

get_expression_raincloud(
vista,
genes = selected_genes[1:10],
value_transform = "log2",
summarise = TRUE,
facet_by = "none",
id.long.var = "gene"
)

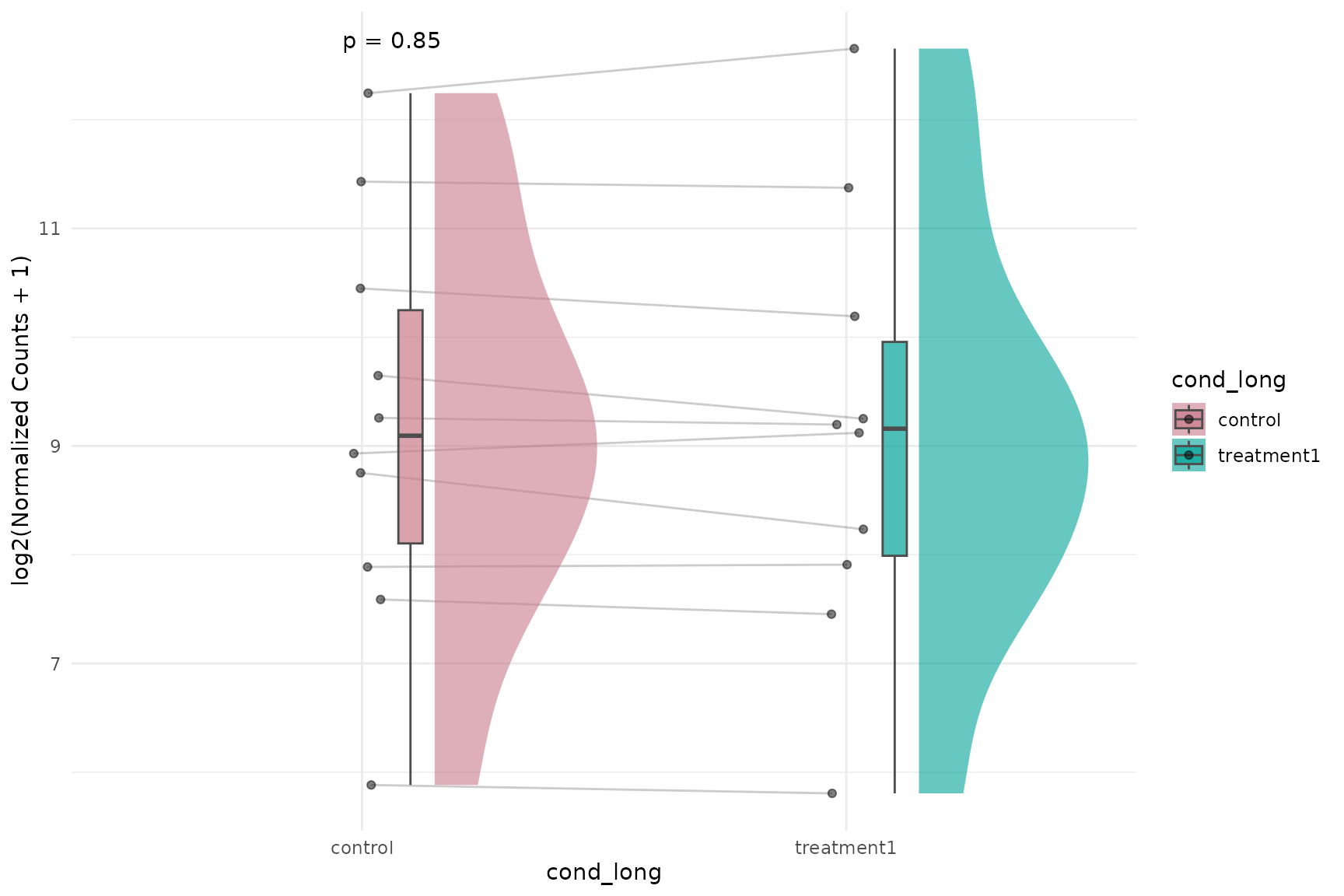

Expression raincloud with lines and p-values
get_expression_raincloud(
vista,
genes = selected_genes[1:10],
value_transform = "log2",
summarise = TRUE,
facet_by = "none",
id.long.var = "gene",
stats_group = TRUE,
stats_method = "wilcox.test",
p.label = "p.format"
)

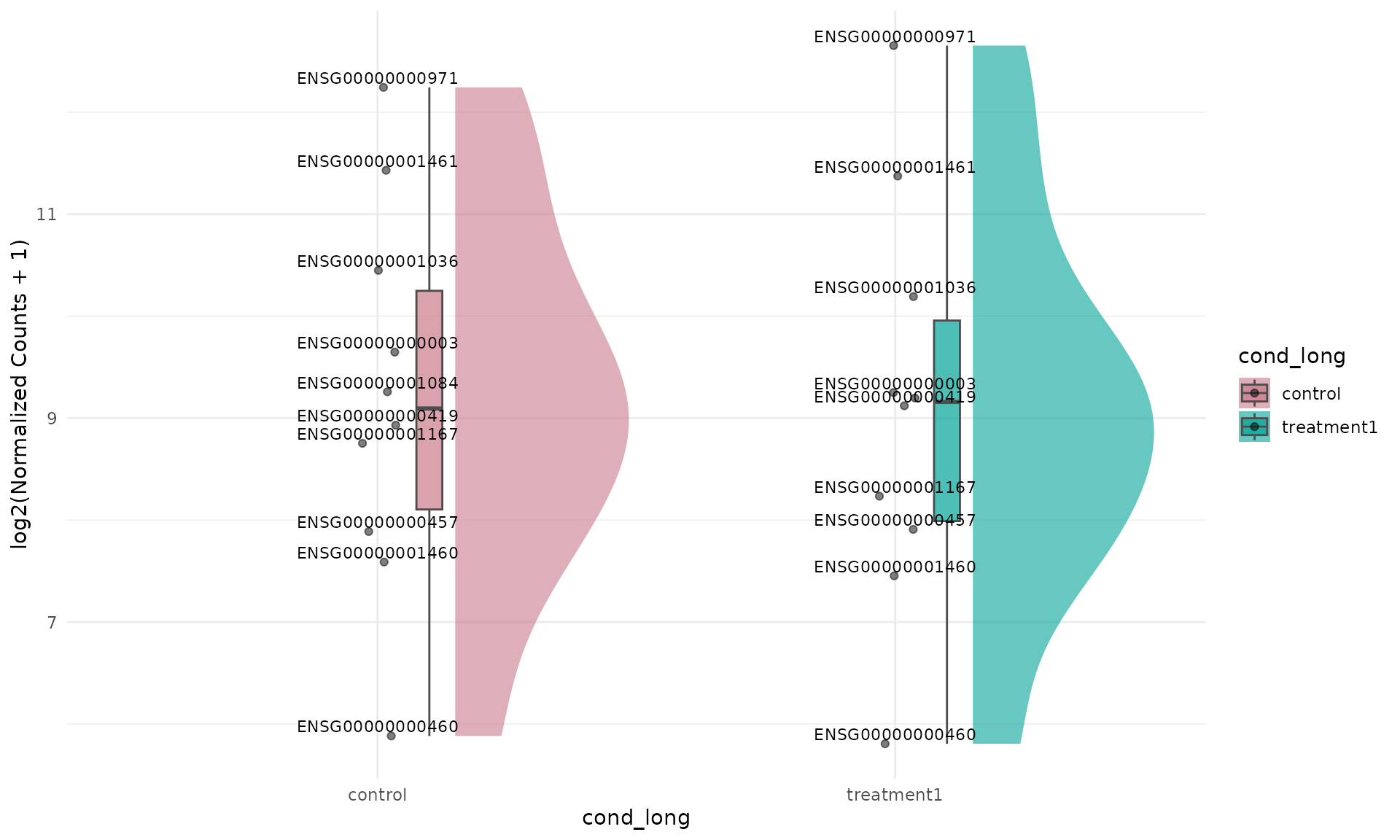

Label dots by gene ID (facet_by = "none")
get_expression_raincloud(
vista,
genes = selected_genes[1:10],
value_transform = "log2",
summarise = TRUE,
facet_by = "none",
label = TRUE,
label_column = "gene",
label_size = 3
)
If your object has symbol annotations in rowData(vista)
(or you provide display_from/display_orgdb),
you can label directly in symbol space:
get_expression_raincloud(
vista,
genes = c("NFKBIA", "KLF6", "PER1"),
value_transform = "log2",
summarise = TRUE,
facet_by = "none",
label = TRUE,
display_id = "SYMBOL"

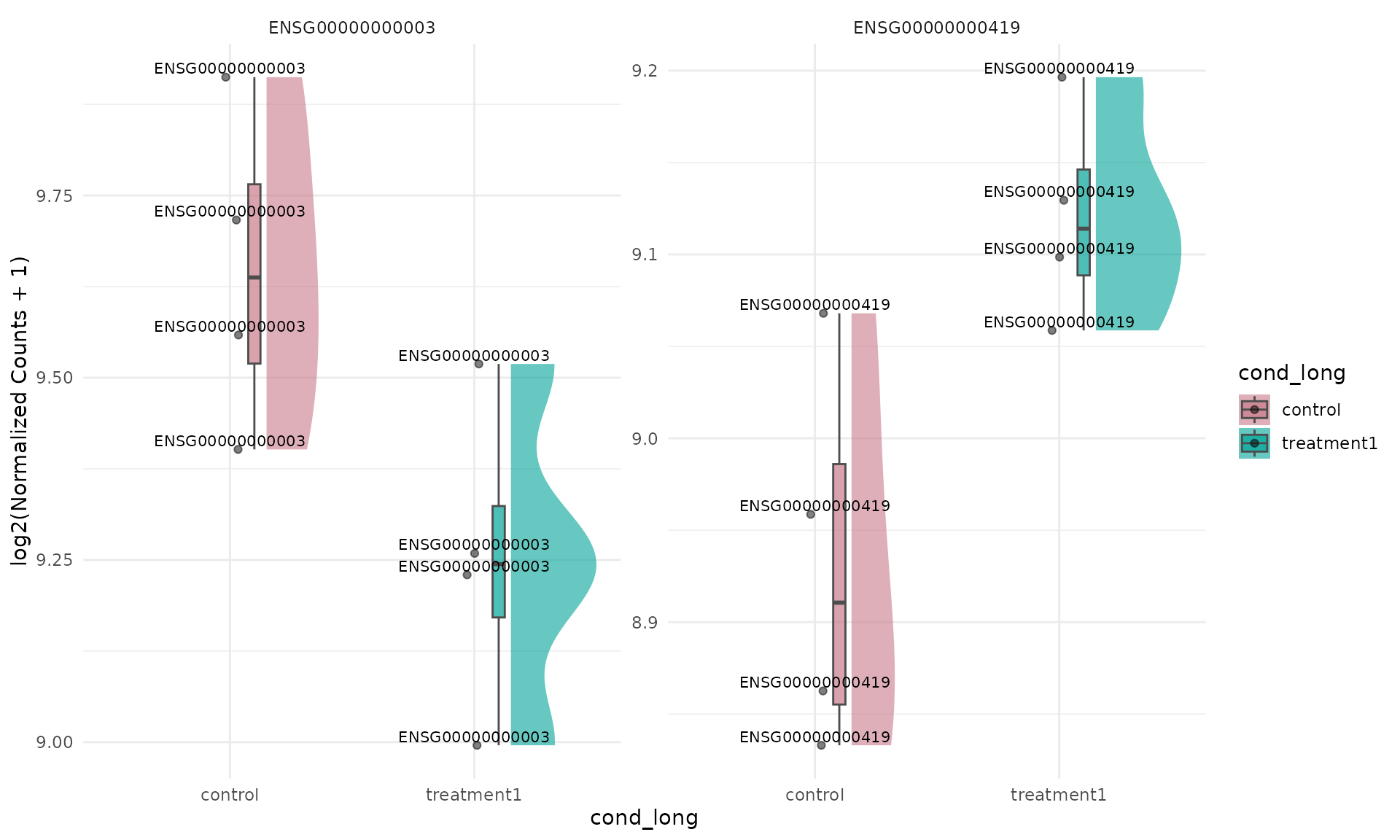

)When facet_by = "gene", prefer
summarise = FALSE so each facet retains replicate-level
distribution. With summarise = TRUE, each facet has only
group-level summaries and the raincloud shape is usually not
informative.
get_expression_raincloud(
vista,
genes = selected_genes[1:2],
value_transform = "log2",
summarise = FALSE,
facet_by = "gene",
label = TRUE,
label_column = "gene",
label_size = 2.8
)

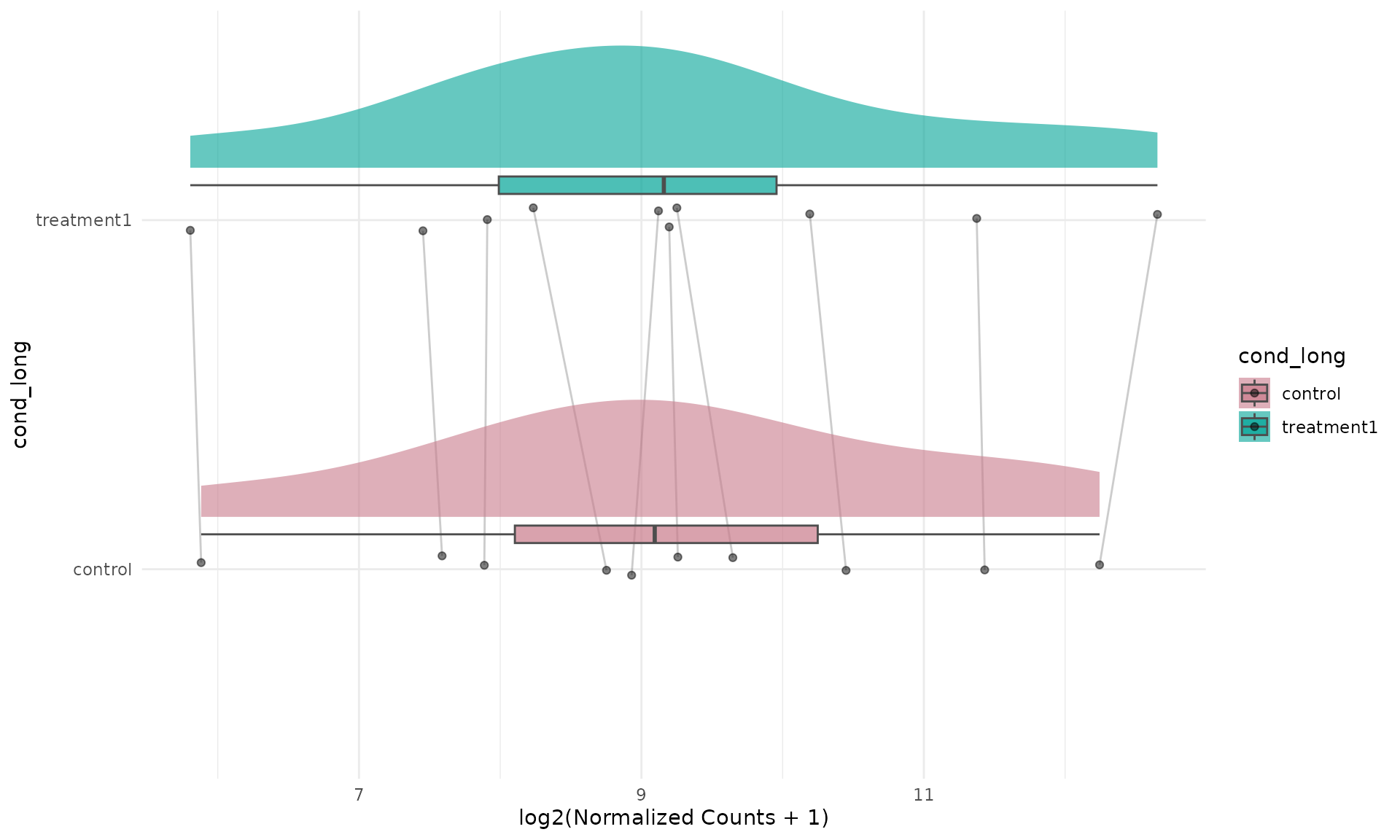

Flipped expression raincloud
Raincloud plots can be visually emphasized in a horizontal layout by
combining a left-side raincloud with coord_flip().
get_expression_raincloud(
vista,
genes = selected_genes[1:10],
value_transform = "log2",
summarise = TRUE,
facet_by = "none",
rain_side = "r",
id.long.var = "gene"
) +
ggplot2::coord_flip()
Fold-Change Raincloud

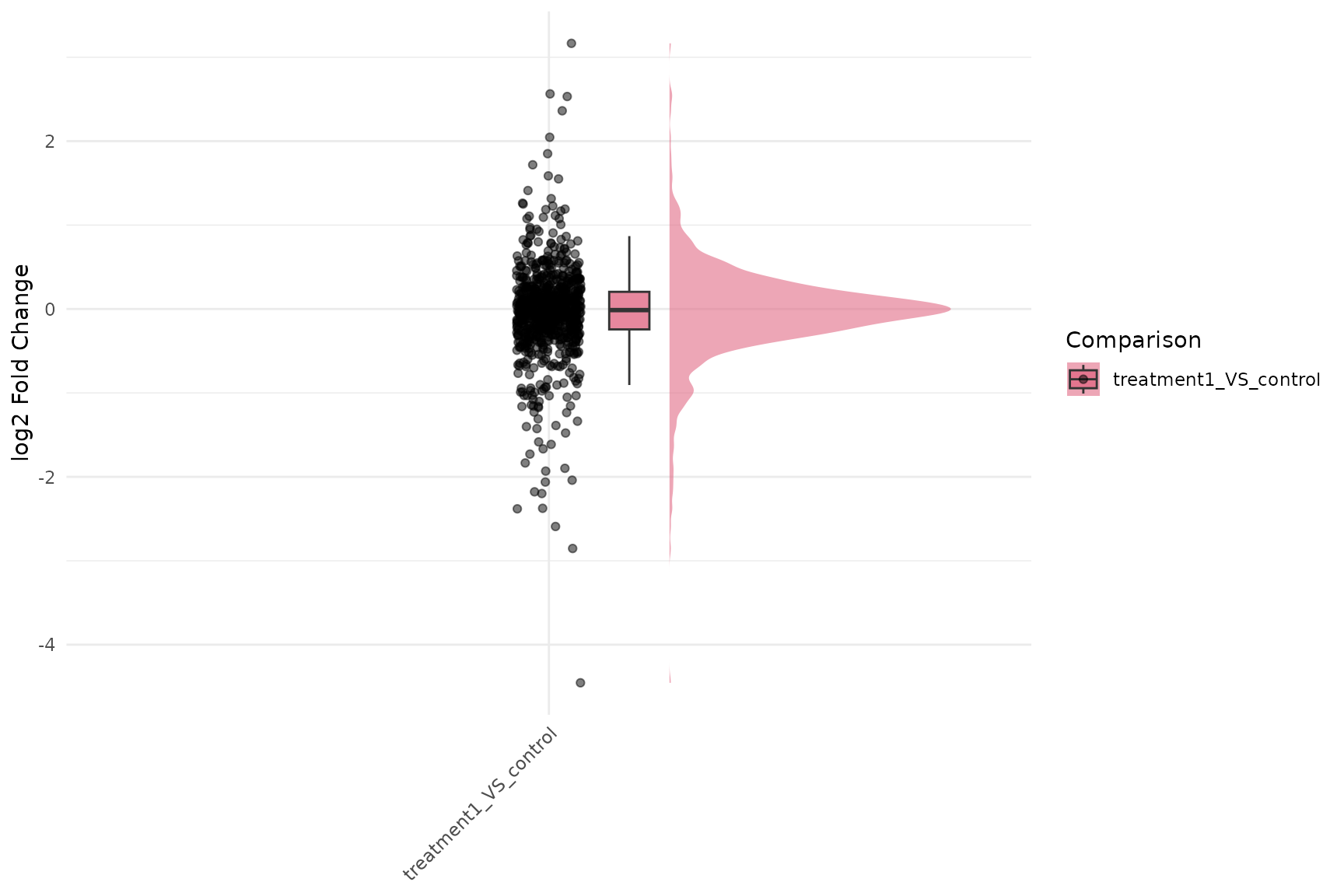

Basic fold-change raincloud
get_foldchange_raincloud(
vista,
sample_comparisons = comp_names,
facet_by = "auto"
)
Fold-change raincloud with gene trajectories and p-values
get_foldchange_raincloud(
vista,
sample_comparisons = comp_names,
facet_by = "none",
id.long.var = "gene_id",
stats_group = TRUE,
stats_method = "t.test"
)

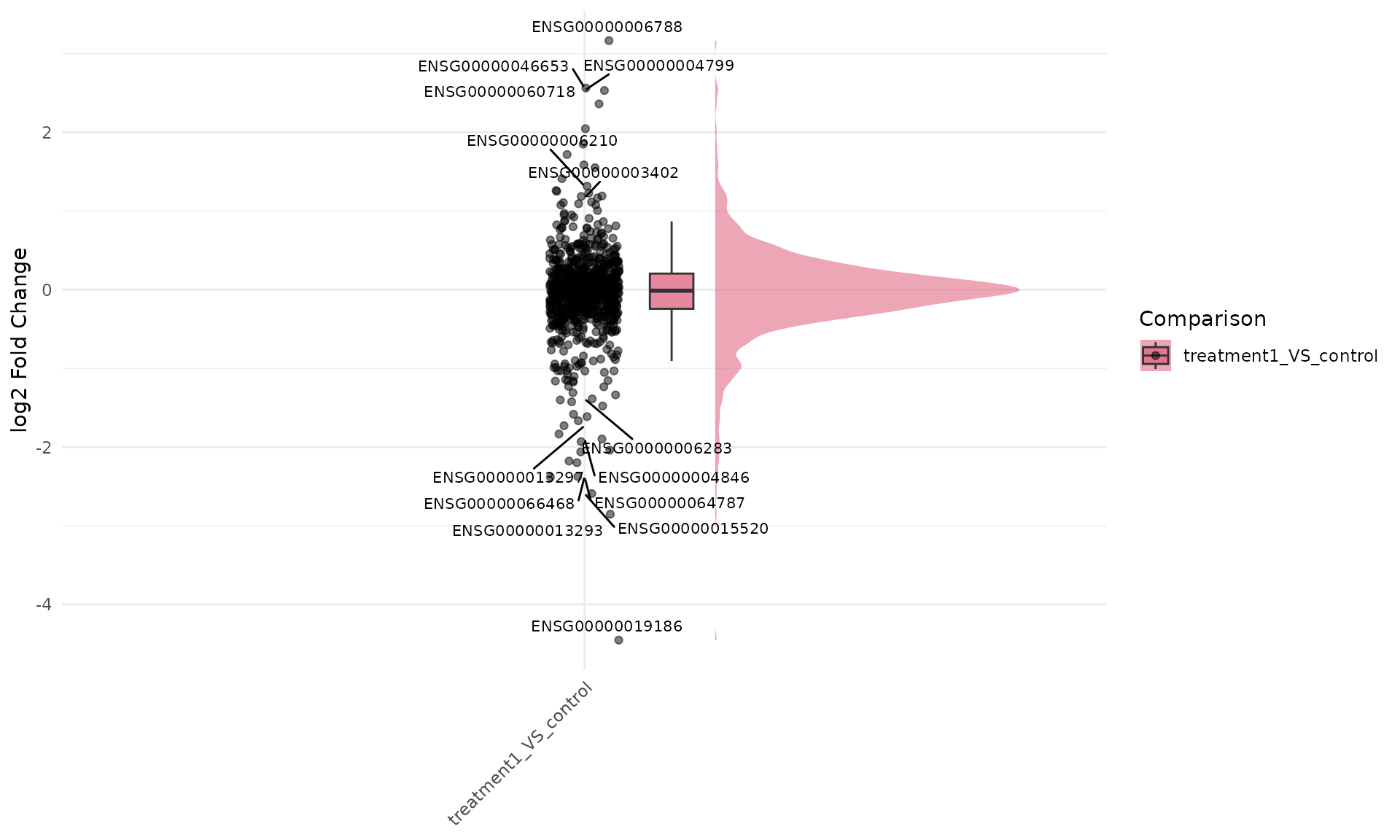

Label dots by gene ID for fold-change raincloud
get_foldchange_raincloud(
vista,
sample_comparisons = comp_names,
facet_by = "none",
label = TRUE,
label_column = "gene_id",
label_size = 2.8
)
get_foldchange_raincloud(
vista,
genes = c("NFKBIA", "KLF6", "PER1"),
sample_comparisons = comp_names,
facet_by = "none",
label = TRUE,
display_id = "SYMBOL"

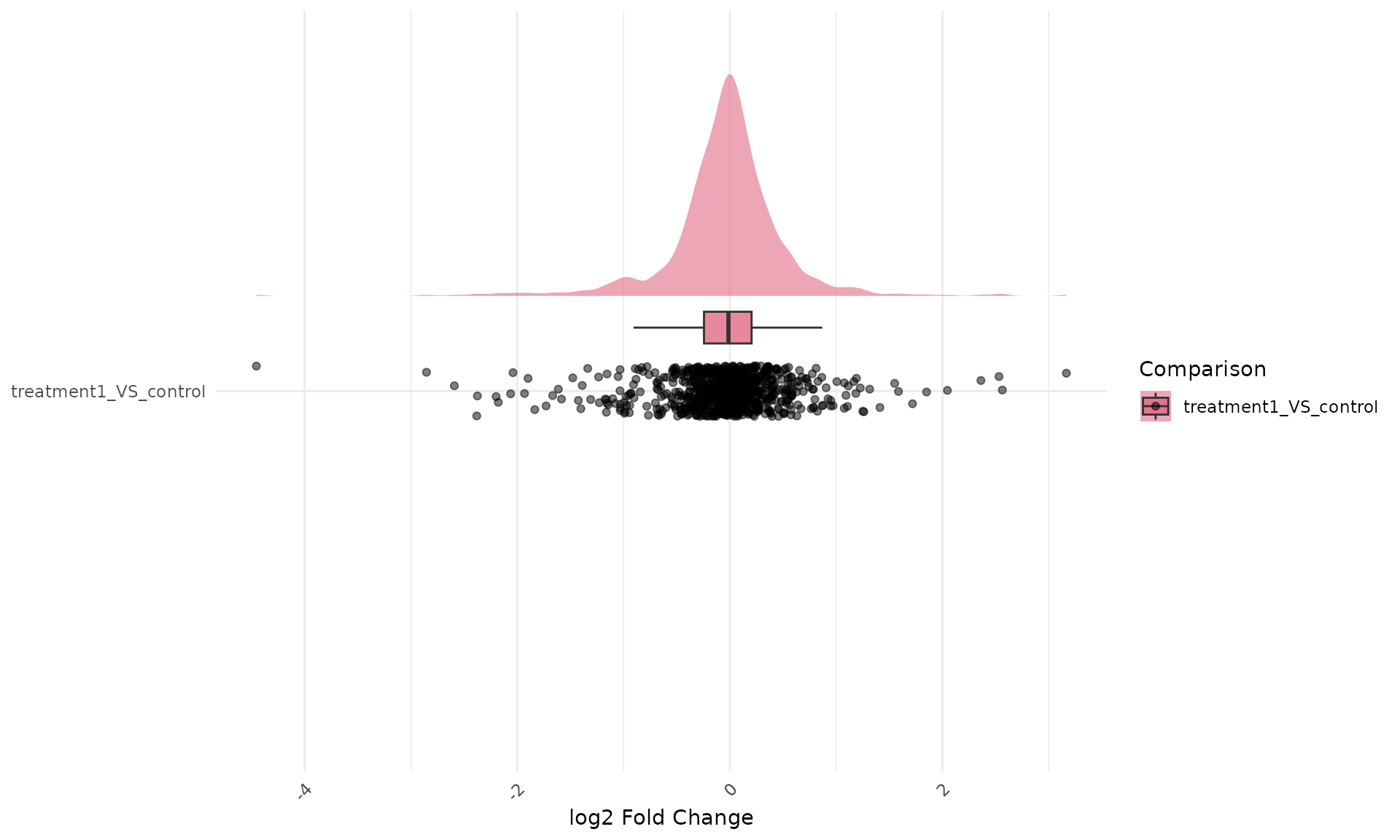

)Flipped fold-change raincloud
get_foldchange_raincloud(
vista,
sample_comparisons = comp_names,
facet_by = "none",
rain_side = "r",
id.long.var = "gene_id"
) +
ggplot2::coord_flip()
Why this is harder outside VISTA
Outside VISTA, producing equivalent raincloud plots is more involved because you must manually:
- extract and harmonize DE tables per comparison,
- reshape to long format for plotting,
- track grouping and palette consistency,
- map repeated-measure identifiers for line connections, and
- add and control statistical annotations per plotting context.
A minimal non-VISTA workflow typically requires custom wrangling and multiple plot-specific settings:
# 1) Build long expression/fold-change tables manually
# 2) Join sample metadata and comparison metadata
# 3) Validate IDs for repeated measures (id.long.var)
# 4) Create raincloud layers and palette mapping
# 5) Add statistical comparisons and label formatting
# 6) Repeat the process for each analysis object/comparison setIn VISTA, these steps are encapsulated in
get_expression_raincloud() and
get_foldchange_raincloud() while staying consistent with
the rest of the plotting API.
