Cell-Type Deconvolution with VISTA (airway)
VISTA Development Team
VISTA-deconvolution.RmdOverview
This vignette demonstrates how to run cell-type
deconvolution with VISTA using the Bioconductor
airway dataset.
Workflow covered:
- Build a
VISTAobject from airway counts and metadata. - Run
run_cell_deconvolution()(xCell2 backend). - Extract cell-fraction estimates with
get_cell_fractions(). - Visualize sample-level composition with
plot_celltype_barplot(). - Compare treatment groups with
get_celltype_group_dotplot(). - Inspect cell-type/sample structure with
get_celltype_heatmap().
Prepare Airway Data
data("airway", package = "airway")
counts_matrix <- SummarizedExperiment::assay(airway, "counts")
sample_metadata <- as.data.frame(SummarizedExperiment::colData(airway))
# Keep sample IDs explicit for VISTA alignment.
sample_metadata$sample_names <- rownames(sample_metadata)
sample_metadata$cond_long <- ifelse(sample_metadata$dex == "trt", "dexamethasone", "untreated")
count_data <- as.data.frame(counts_matrix) %>%
tibble::rownames_to_column("gene_id")
# Ensure column order follows sample_metadata.
count_data <- count_data[, c("gene_id", sample_metadata$sample_names)]
dim(count_data)
#> [1] 63677 9
sample_metadata[, c("sample_names", "cell", "dex", "cond_long")]
#> sample_names cell dex cond_long
#> SRR1039508 SRR1039508 N61311 untrt untreated
#> SRR1039509 SRR1039509 N61311 trt dexamethasone
#> SRR1039512 SRR1039512 N052611 untrt untreated
#> SRR1039513 SRR1039513 N052611 trt dexamethasone
#> SRR1039516 SRR1039516 N080611 untrt untreated
#> SRR1039517 SRR1039517 N080611 trt dexamethasone
#> SRR1039520 SRR1039520 N061011 untrt untreated
#> SRR1039521 SRR1039521 N061011 trt dexamethasoneCreate VISTA Object
vista_airway <- create_vista(
counts = count_data,
sample_info = sample_metadata,
column_geneid = "gene_id",
group_column = "cond_long",
group_numerator = "dexamethasone",
group_denominator = "untreated",
covariates = "cell",
method = "deseq2",
min_counts = 10,
min_replicates = 1
)
# Add gene annotations (used for downstream interpretation and fallback symbol mapping).
vista_airway <- set_rowdata(
vista_airway,
orgdb = org.Hs.eg.db,
columns = c("SYMBOL", "GENENAME", "ENTREZID"),
keytype = "ENSEMBL"
)
vista_airway
#> class: VISTA
#> dim: 18086 8
#> metadata(12): de_results de_summary ... design comparison
#> assays(1): norm_counts
#> rownames(18086): ENSG00000000003 ENSG00000000419 ... ENSG00000273487
#> ENSG00000273488
#> rowData names(4): baseMean SYMBOL GENENAME ENTREZID
#> colnames(8): SRR1039508 SRR1039509 ... SRR1039520 SRR1039521
#> colData names(12): SampleName cell ... sizeFactor sample_namesRun Deconvolution
run_cell_deconvolution() currently uses xCell2.
If xCell2 is unavailable, this vignette will skip
deconvolution sections.
cat("Package 'xCell2' is not installed; deconvolution steps are skipped.\n")
cat("Install it to run these sections:\n")
cat(" BiocManager::install('xCell2')\n")
# First try default threshold, then relax minSharedGenes if needed.
deconv_try <- tryCatch(
run_cell_deconvolution(
x = vista_airway,
method = "xCell2",
gene_id_type = "ensembl"
),
error = function(e) e
)
if (inherits(deconv_try, "error")) {
msg <- conditionMessage(deconv_try)
if (grepl("minSharedGenes", msg, fixed = TRUE)) {
message("Retrying xCell2 deconvolution with minSharedGenes = 0.6")
deconv_try <- tryCatch(
run_cell_deconvolution(
x = vista_airway,
method = "xCell2",
gene_id_type = "ensembl",
minSharedGenes = 0.6
),
error = function(e) e
)
}
}
if (inherits(deconv_try, "error")) {
has_deconv <- FALSE
message("Deconvolution could not be completed in this environment:\n", conditionMessage(deconv_try))
} else {
vista_deconv <- deconv_try
has_deconv <- TRUE
vista_deconv
}
#> class: VISTA
#> dim: 18086 8
#> metadata(13): de_results de_summary ... comparison cell_fractions
#> assays(1): norm_counts
#> rownames(18086): ENSG00000000003 ENSG00000000419 ... ENSG00000273487
#> ENSG00000273488
#> rowData names(4): baseMean SYMBOL GENENAME ENTREZID
#> colnames(8): SRR1039508 SRR1039509 ... SRR1039520 SRR1039521
#> colData names(12): SampleName cell ... sizeFactor sample_namesInspect Cell Fractions
cell_fractions <- get_cell_fractions(vista_deconv)
dim(cell_fractions)
#> [1] 8 43
cell_fractions[1:min(4, nrow(cell_fractions)), 1:min(6, ncol(cell_fractions))]
#> neutrophil monocyte megakaryocyte-erythroid progenitor cell
#> SRR1039508 2.746005e-22 0.000000e+00 0.000000e+00
#> SRR1039509 4.648547e-23 0.000000e+00 1.157681e-05
#> SRR1039512 0.000000e+00 1.220985e-20 5.108035e-05
#> SRR1039513 4.611114e-22 0.000000e+00 1.347784e-05
#> CD4-positive, alpha-beta T cell regulatory T cell
#> SRR1039508 2.783925e-05 1.816553e-24
#> SRR1039509 3.985213e-05 0.000000e+00
#> SRR1039512 1.816519e-05 0.000000e+00
#> SRR1039513 2.921939e-05 0.000000e+00
#> central memory CD4-positive, alpha-beta T cell
#> SRR1039508 0.000000e+00
#> SRR1039509 6.472498e-31
#> SRR1039512 2.746680e-23

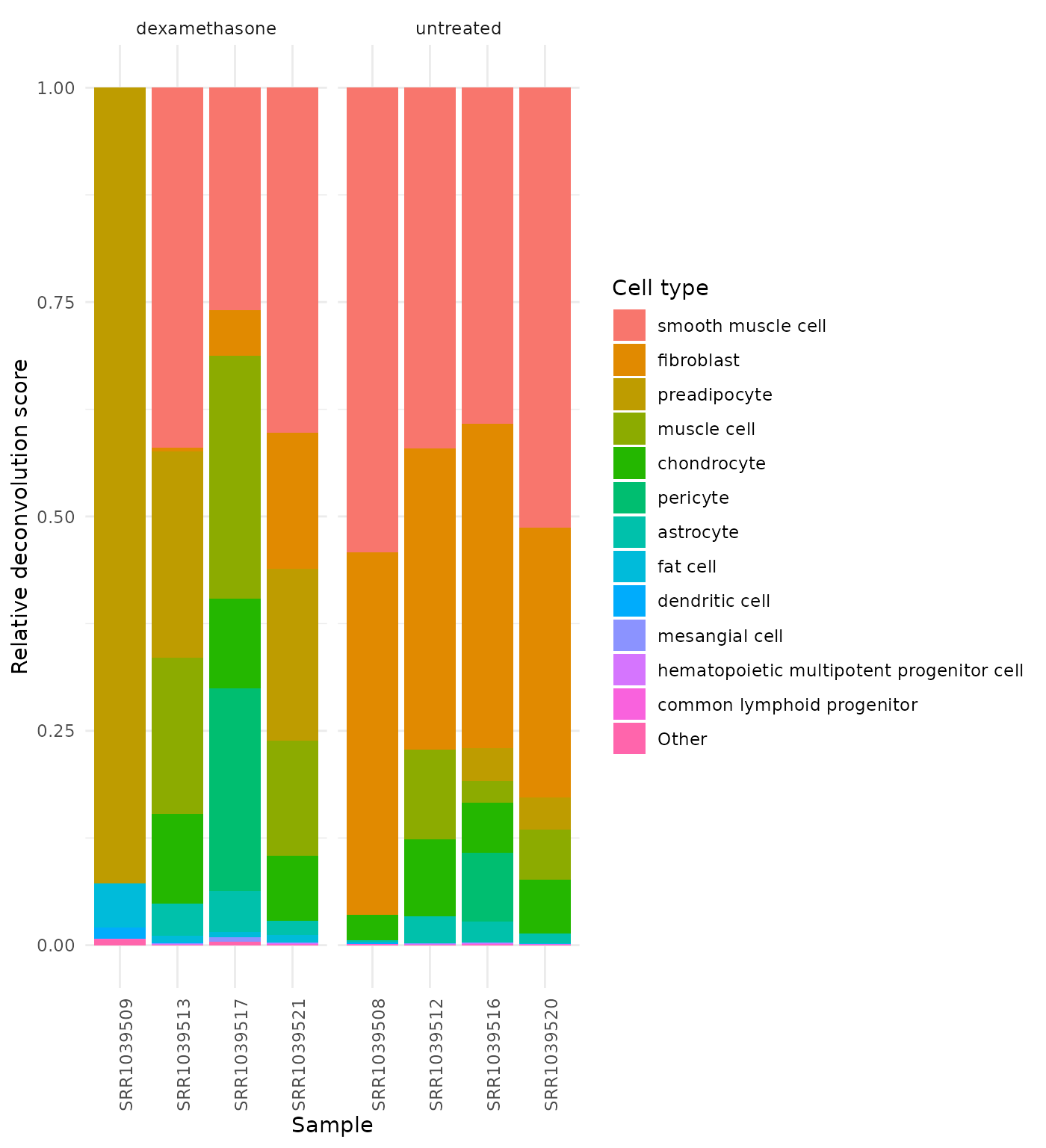

#> SRR1039513 0.000000e+00Plot Cell-Type Composition
plot_celltype_barplot(
x = vista_deconv,
group_column = "cond_long",
top_n = 12,
collapse_other = TRUE,
normalize = "sample",
facet_by_group = TRUE,
font_size = 11
)

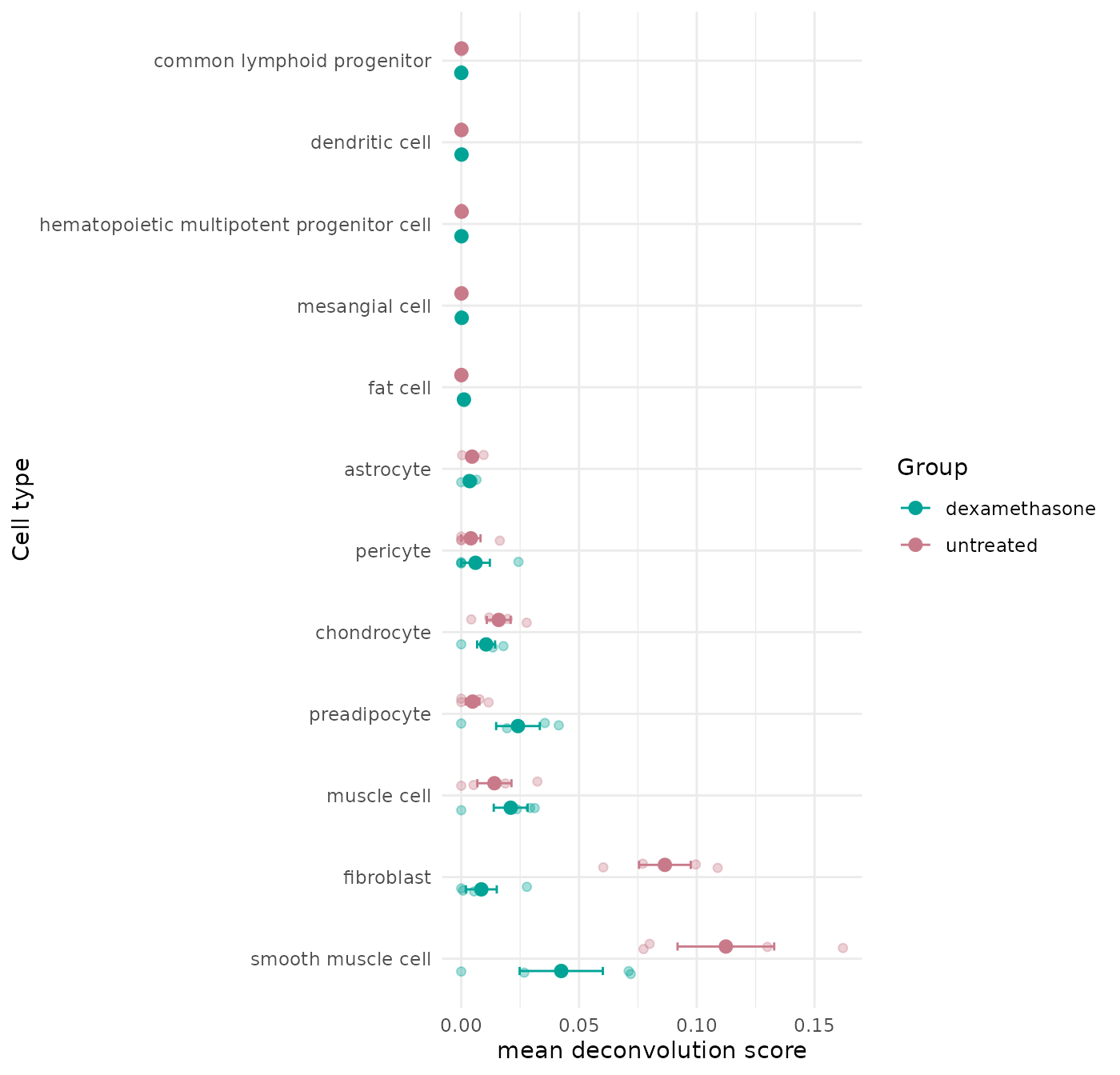

Group-Level Dot Plot
This plot summarizes deconvolution signal by treatment group while keeping sample-level points visible.
get_celltype_group_dotplot(
x = vista_deconv,
group_column = "cond_long",
top_n = 12,
summary_fun = "mean",
error = "se",
add_points = TRUE,
point_size = 2.5,
font_size = 11
)

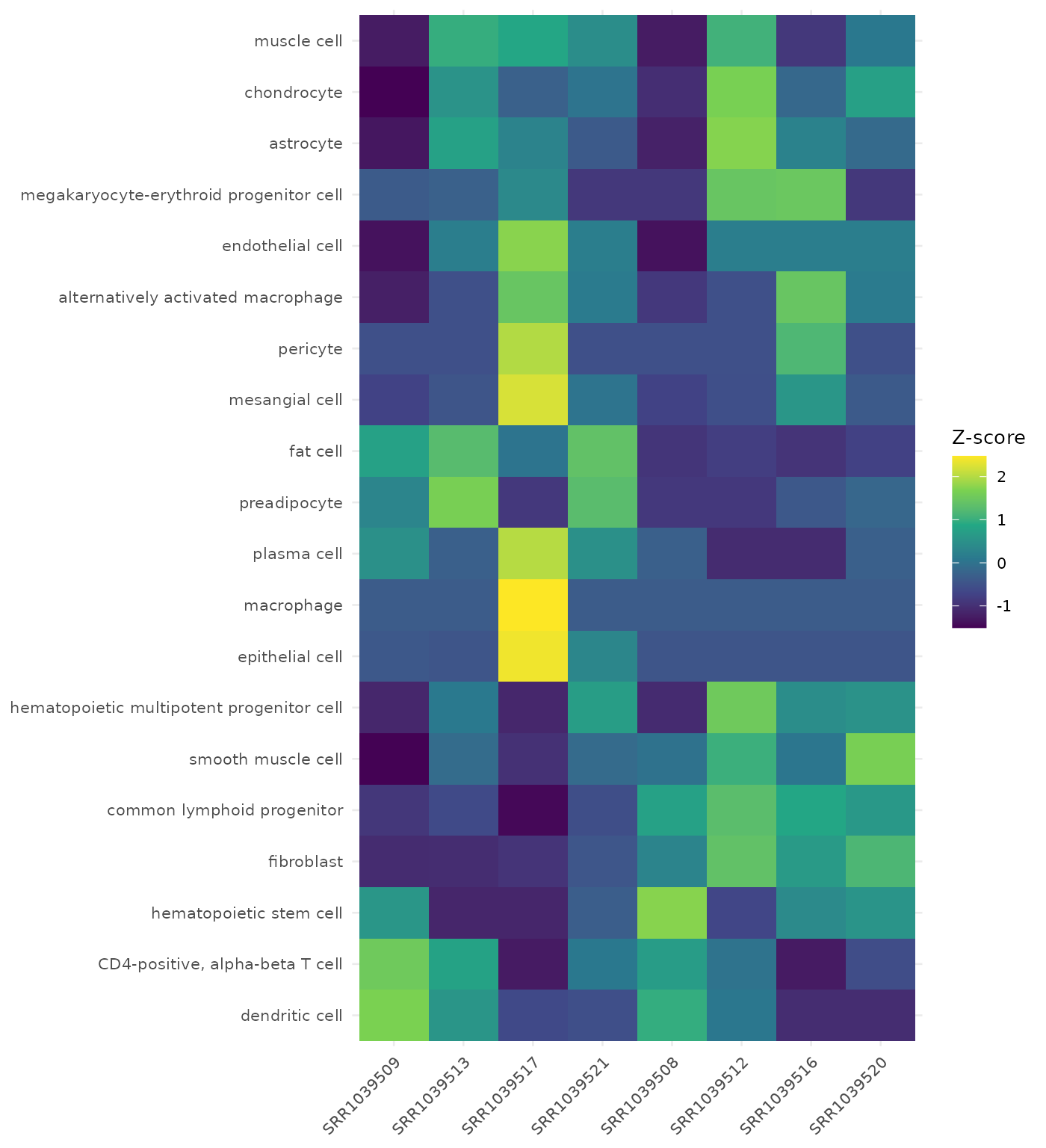

Cell-Type Heatmap
The heatmap is useful to inspect sample-level deconvolution structure and concordance within groups.
get_celltype_heatmap(
x = vista_deconv,
group_column = "cond_long",
top_n = 20,
transform = "zscore",
cluster_rows = TRUE,
cluster_columns = FALSE,
show_values = FALSE,
font_size = 10
)
Notes on Interpretation
- xCell2 outputs are typically enrichment-like abundance scores rather than absolute percentages.
- Use group-level differences and consistency across replicates as the primary interpretation signal.
- Treat results as hypothesis-generating; validate with orthogonal assays when possible.
